Set the same tungsten stick-out every time. Rest the torch cup on the top edge over the slot you want, let the tungsten drop to the bottom of the slot, and tighten the back cap: the tungsten now sticks out of the cup by the depth marked under the slot.
What it does

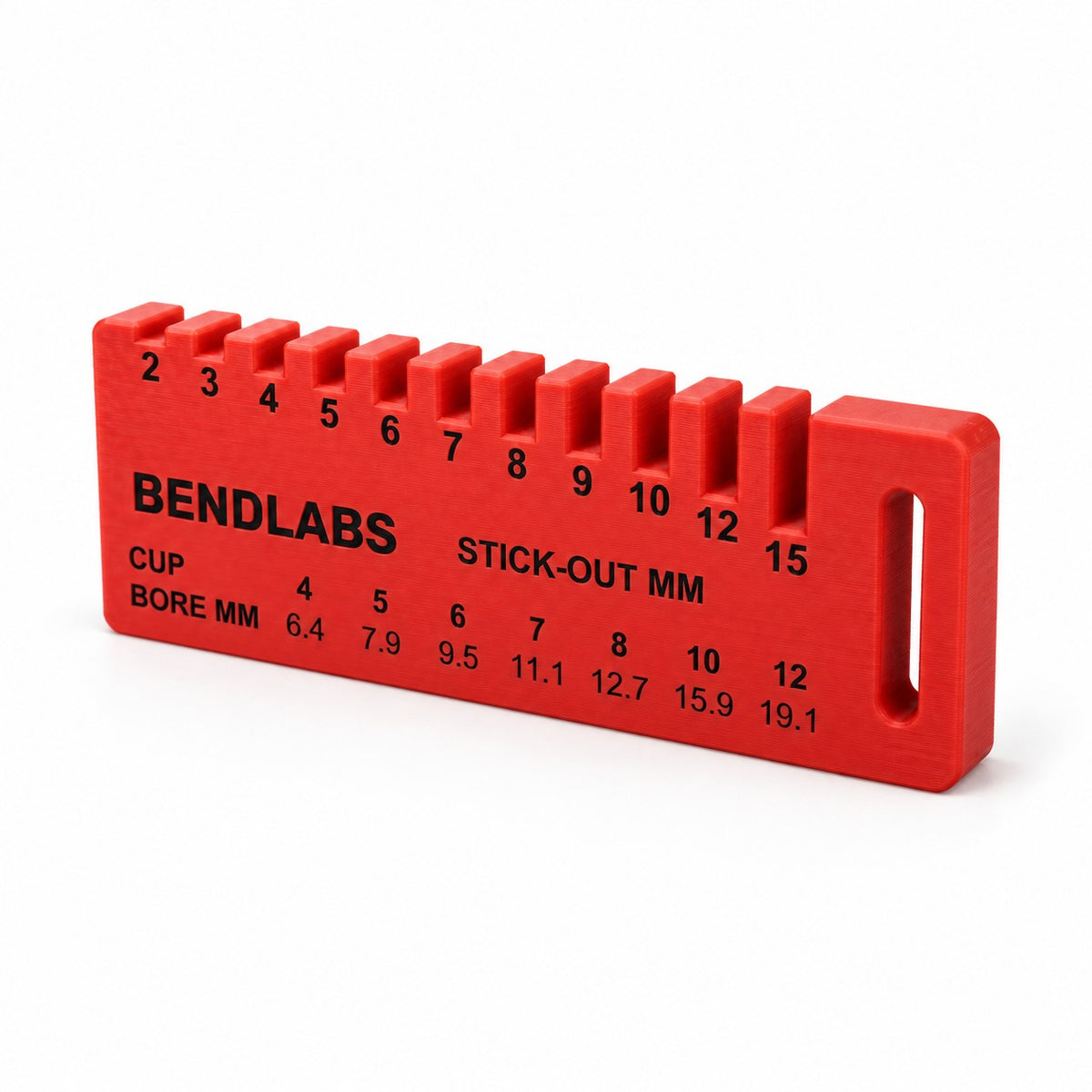

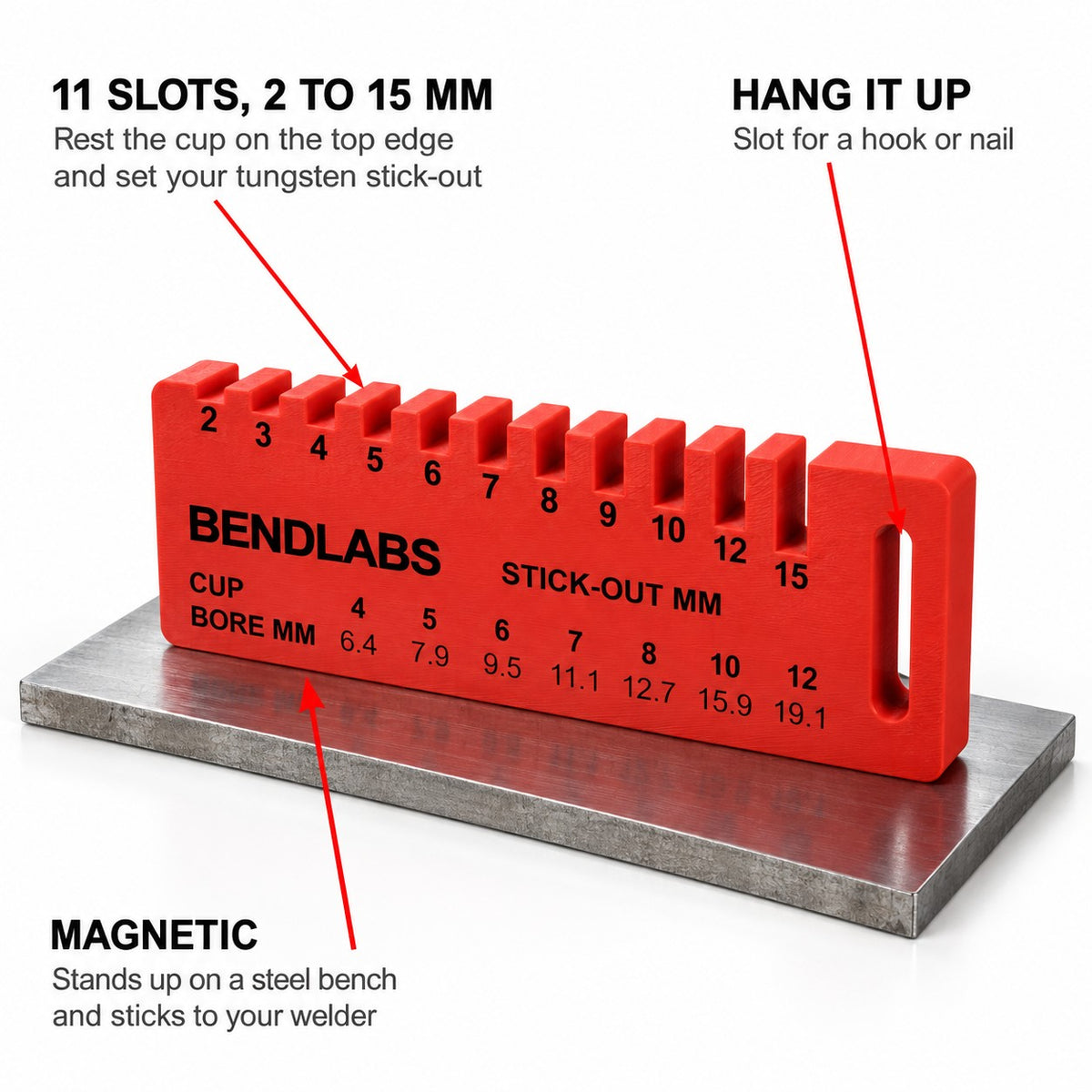

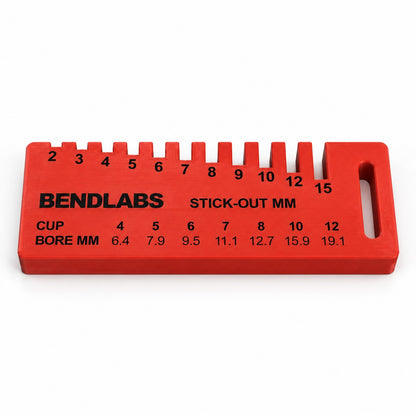

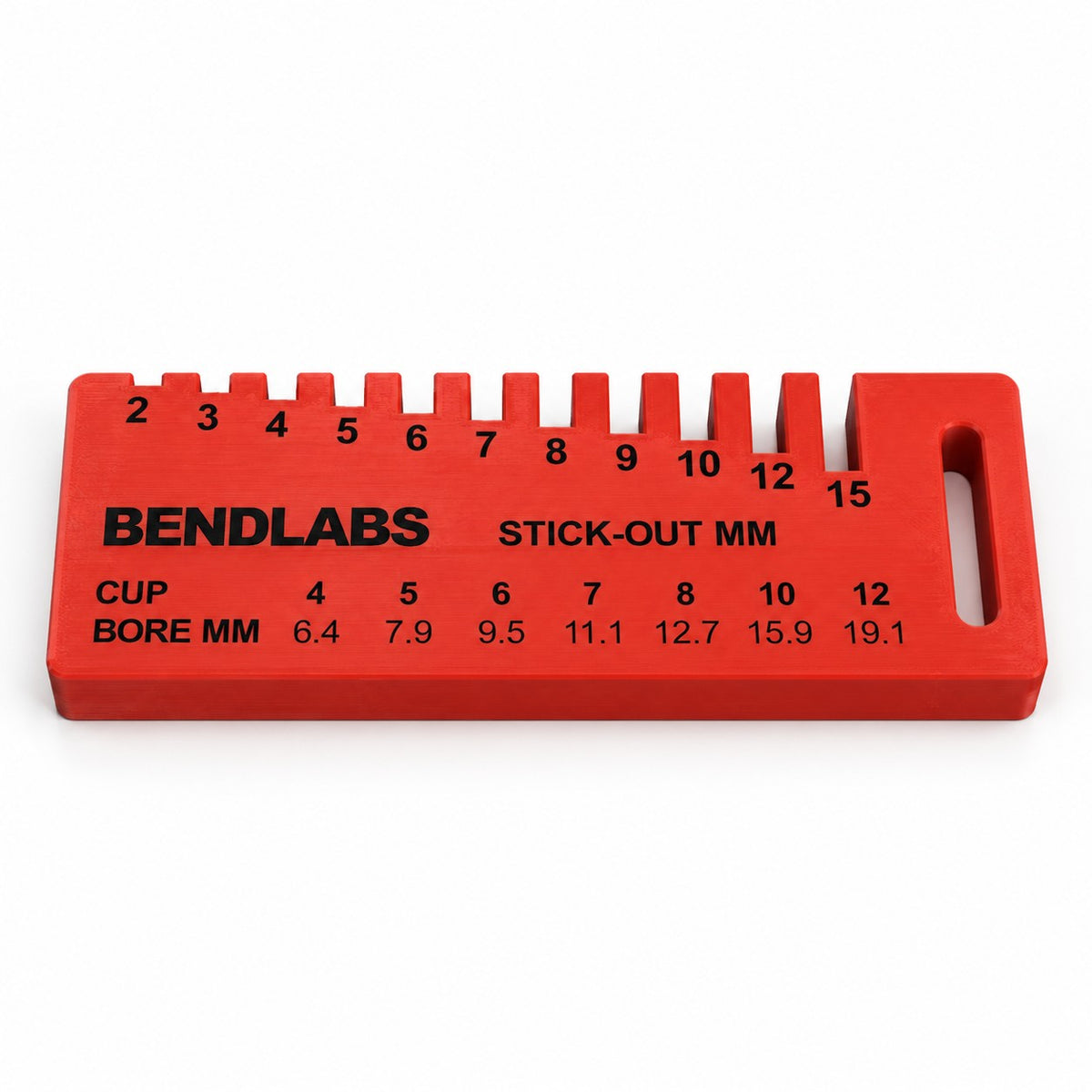

11 slots: 2 to 10 mm in 1 mm steps, plus 12 and 15 mm, each marked with its depth
Every cup from a #4 up bridges the slots, and they take tungstens up to 3.2 mm

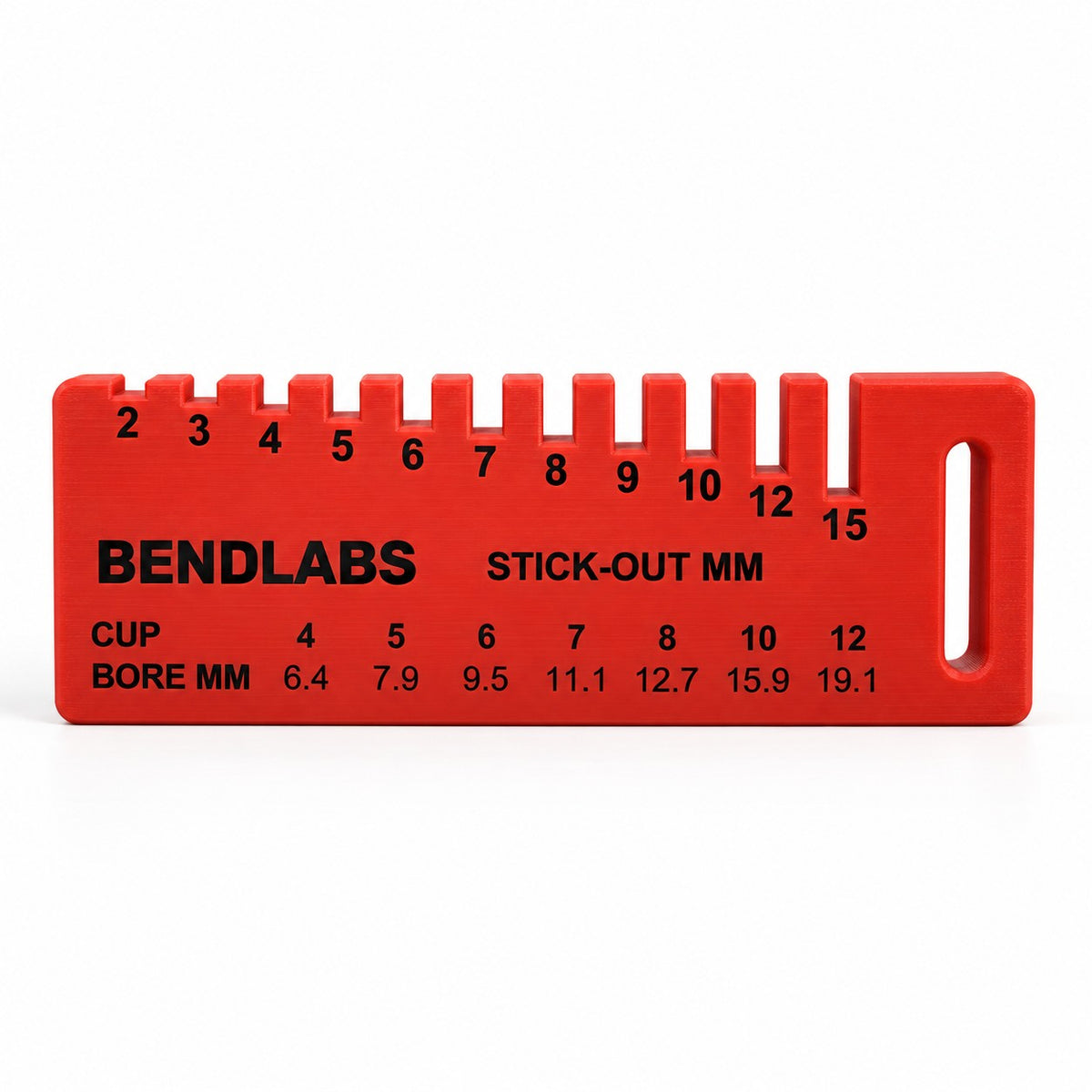

Cup number to bore chart on the front

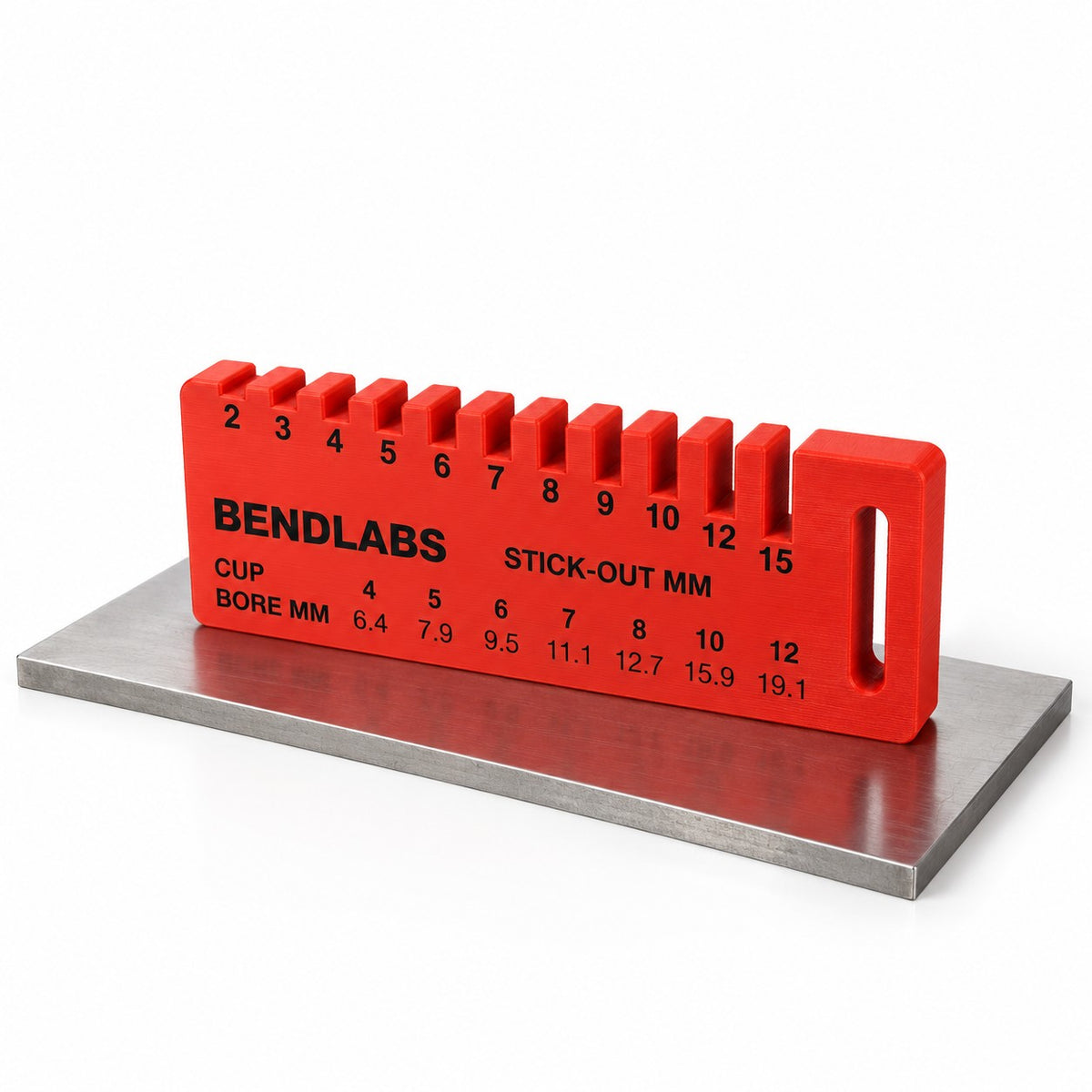

Magnetic: stands up on a steel bench and sticks to the side of your welder
Hanging slot for a hook or nail
Cup sizes
A cup number is its bore in sixteenths of an inch. The chart on the gauge gives the bore in millimetres:
Cup
4
5
6
7
8
10
12
Bore mm
6.4
7.9
9.5
11.1
12.7
15.9
19.1
Specification
Slot depths
2, 3, 4, 5, 6, 7, 8, 9, 10, 12 and 15 mm
Tungsten
Up to 3.2 mm
Size
128 × 46 × 12 mm
Colour
Red with black lettering
Mounting
Magnetic, plus a hanging slot
Manufactured
Made to order in our UK workshop
Good to know
Set the stick-out with the torch cold: a hot cup or tungsten will mark the plastic.
