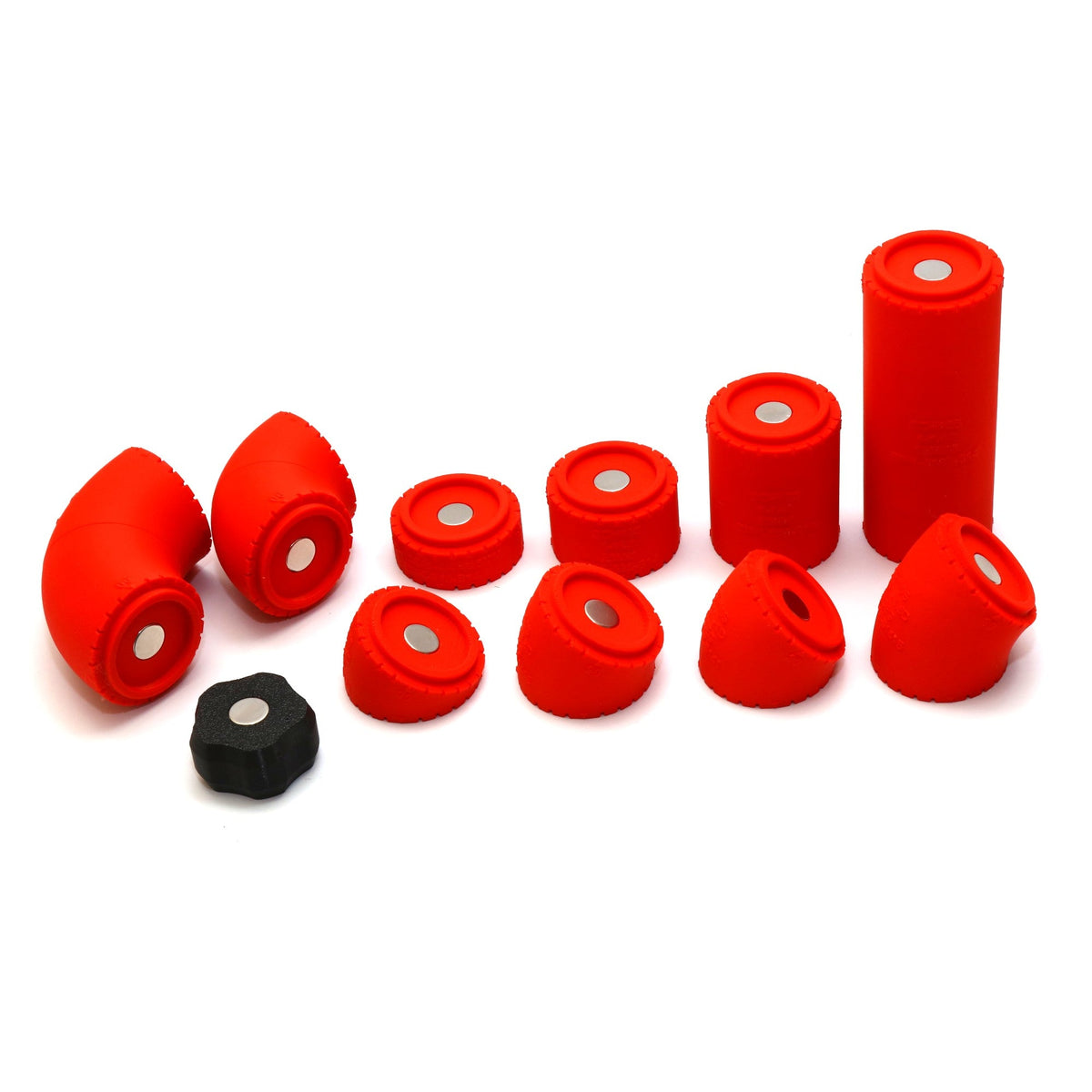

Mockup kits
Magnetic straights, bends and flange adapters for mocking up a manifold on the car. Check the fit and primary lengths, then mark your cuts before you touch any pipe.
- Joints
- Magnetic, and rotate through 360°
- Bends
- True arcs, with tick marks every 15°
- Straights
- Exact lengths
- Radii
- SCH10S kits match ASME B16.9 short and long radius elbows
- Sizes
- 1.25" and 1.5" SCH10S pipe, 1.75" OD tube
Cutting and marking guides
-

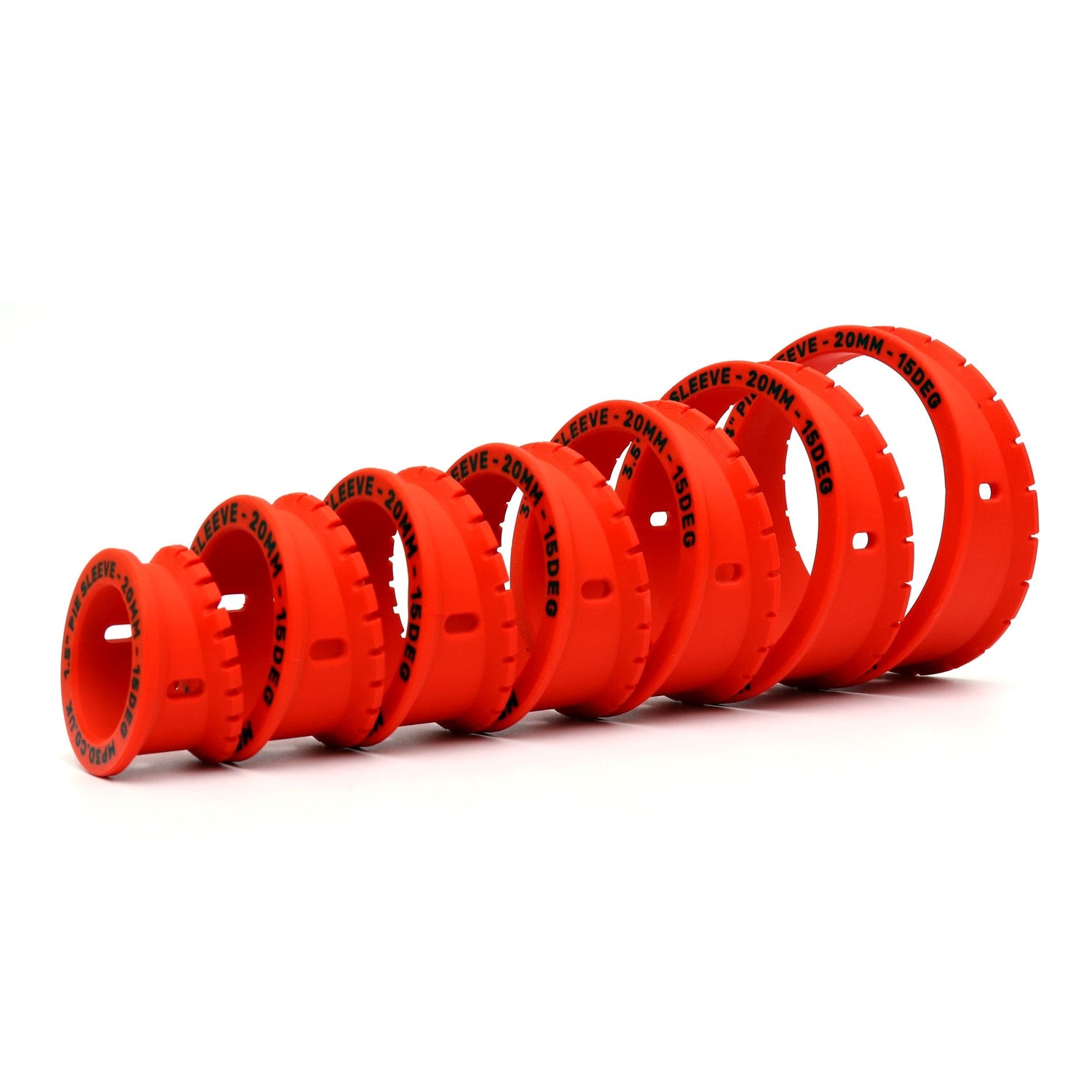

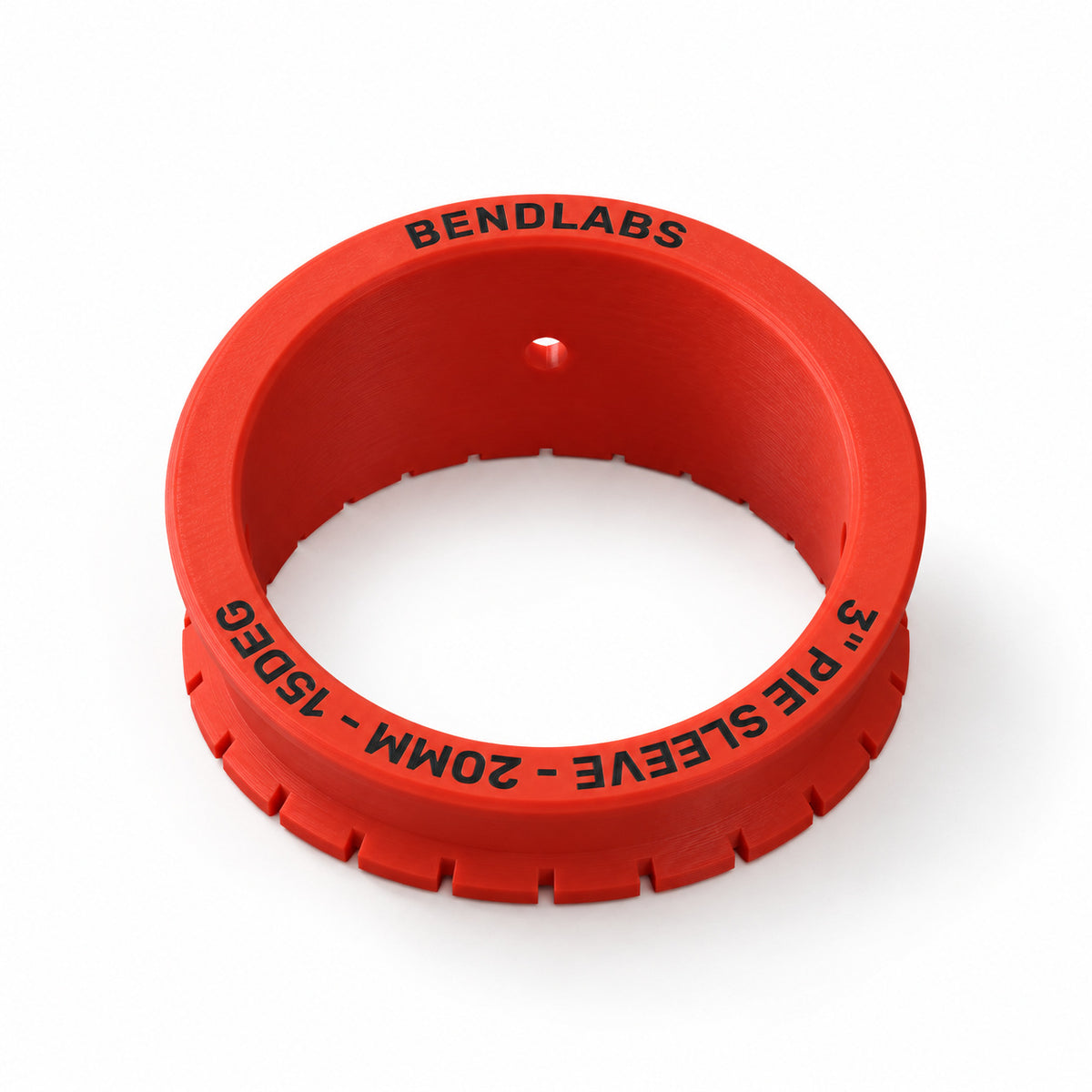

Pie Cutting Guides
Pie cutting is how you make a tight radius bend out of...
-

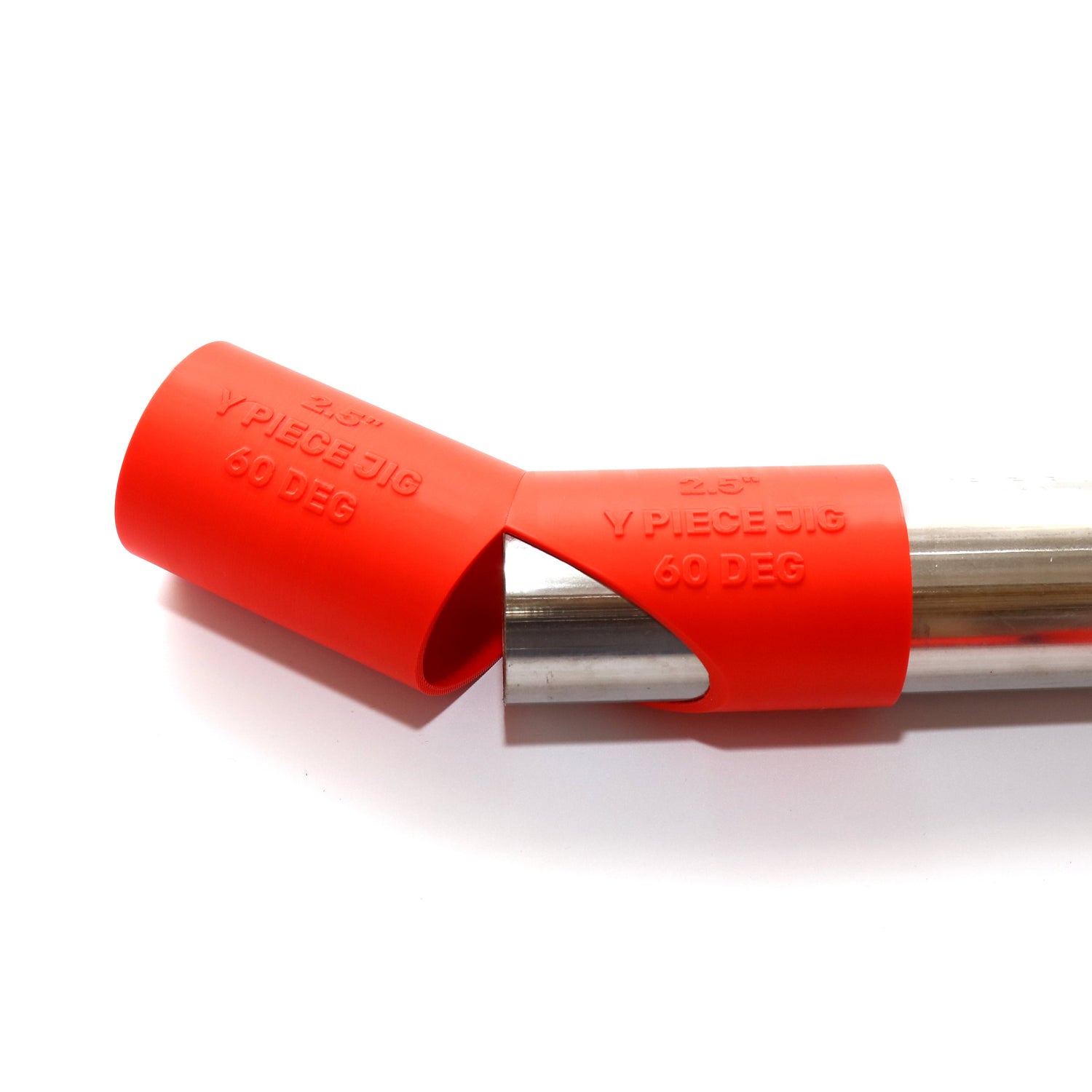

Y Piece & Merge Jigs
A Y piece merge is one of the more awkward cuts in...
-

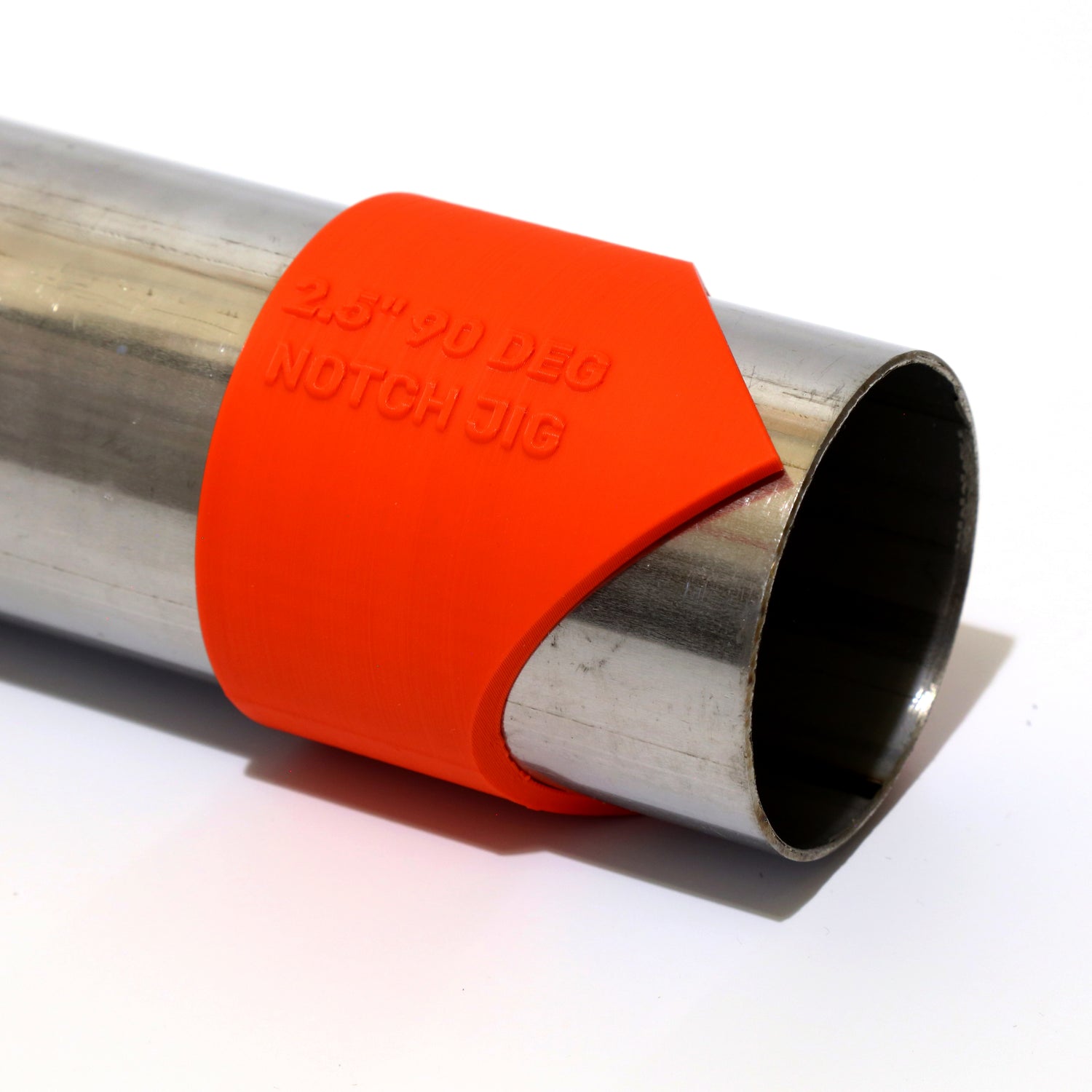

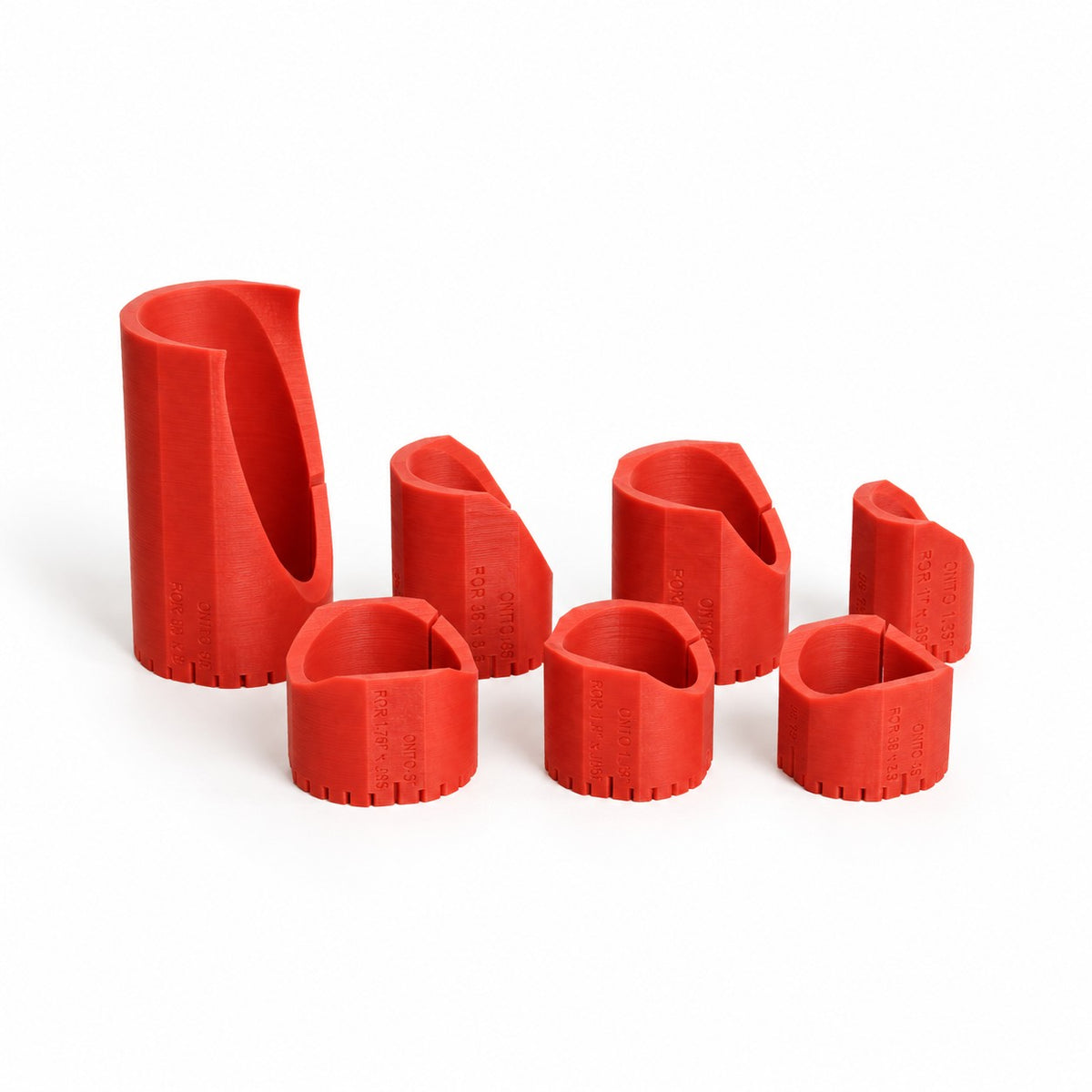

Angled Notch Guides
Notching one pipe to sit against another is straightforward in theory and...
-

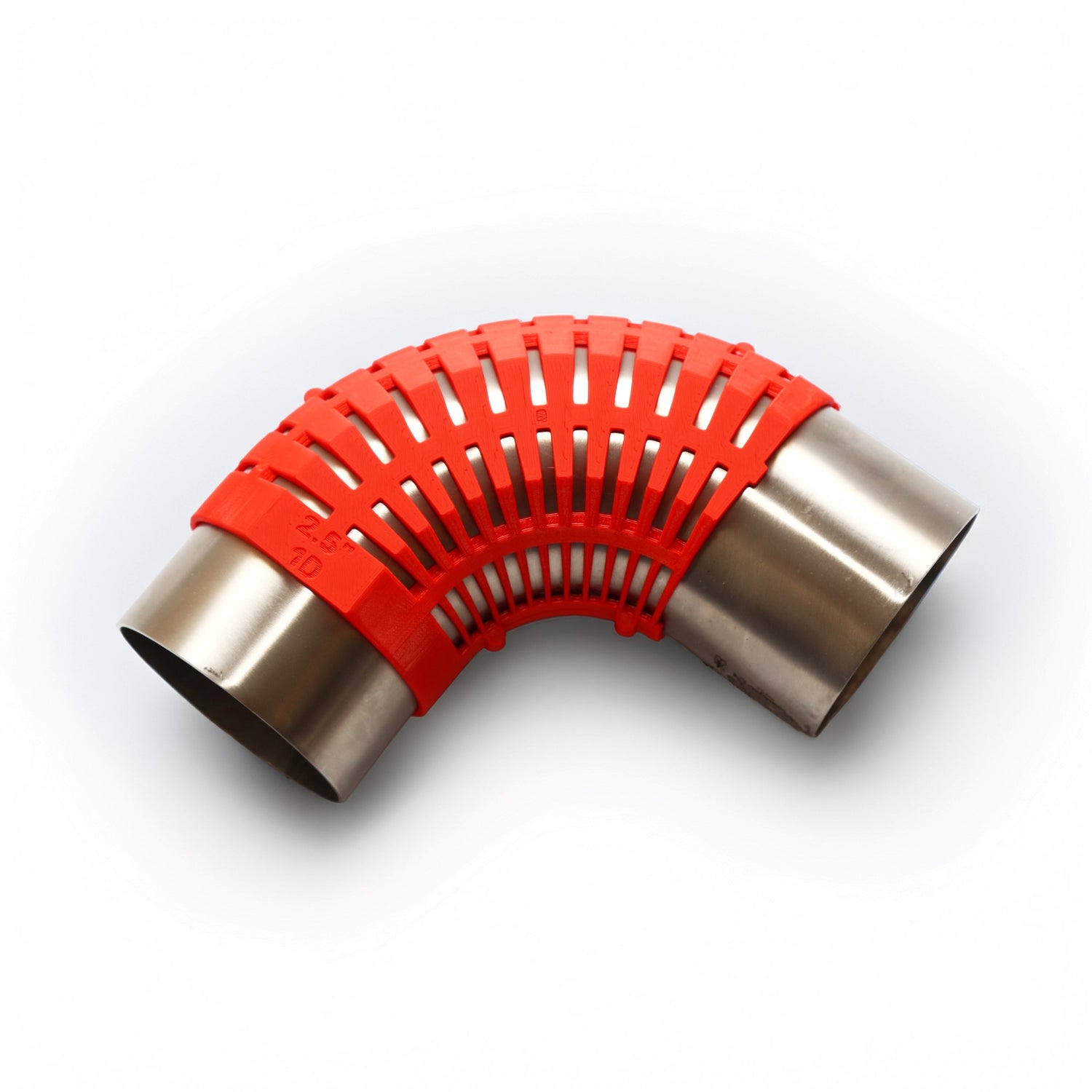

Mandrel Bend Angle Marking Guides
Mandrel bends are expensive, and cutting one badly wastes the whole piece....
-

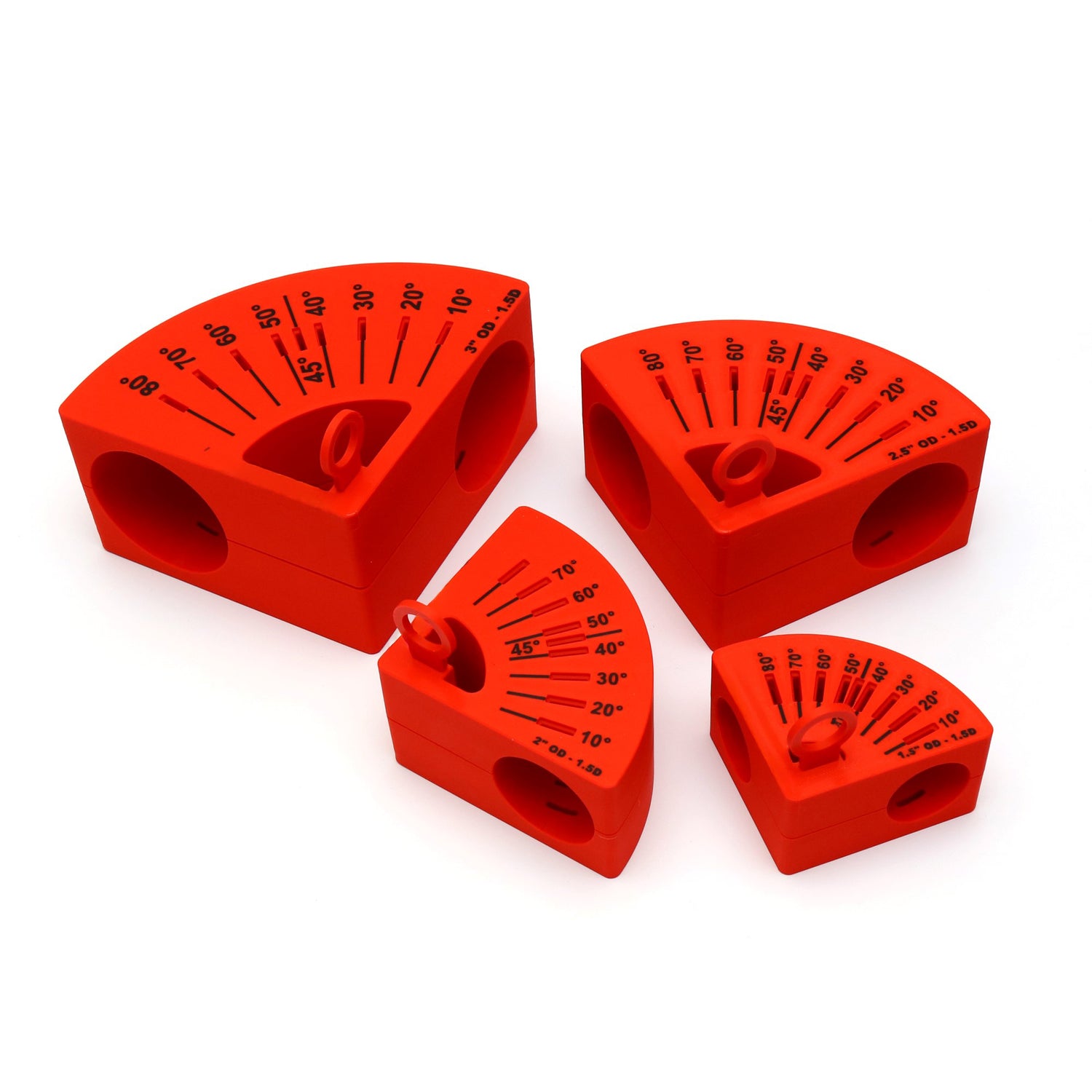

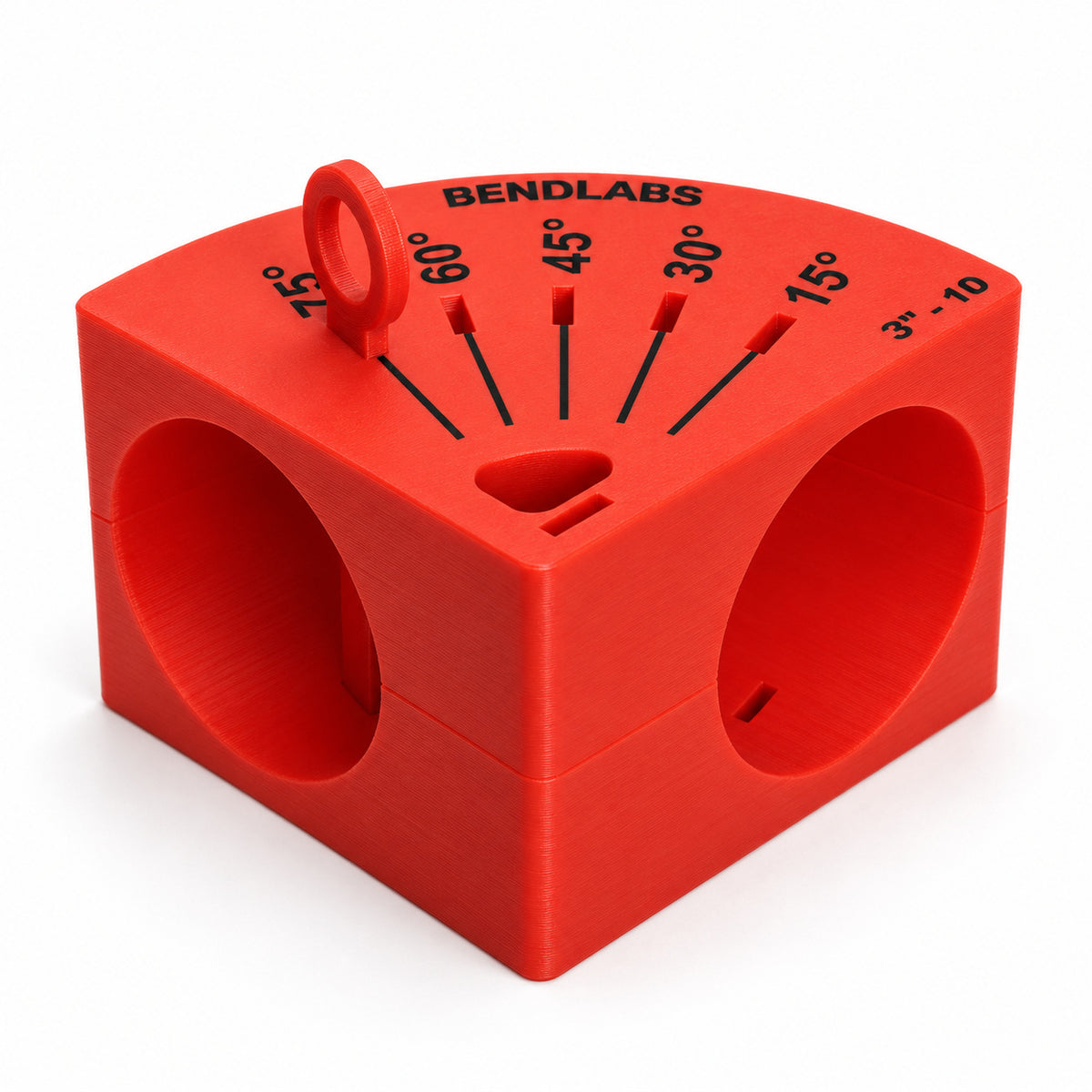

Mitre Blocks
Blocks that hold a mandrel bend while you cut it to angle,...
-

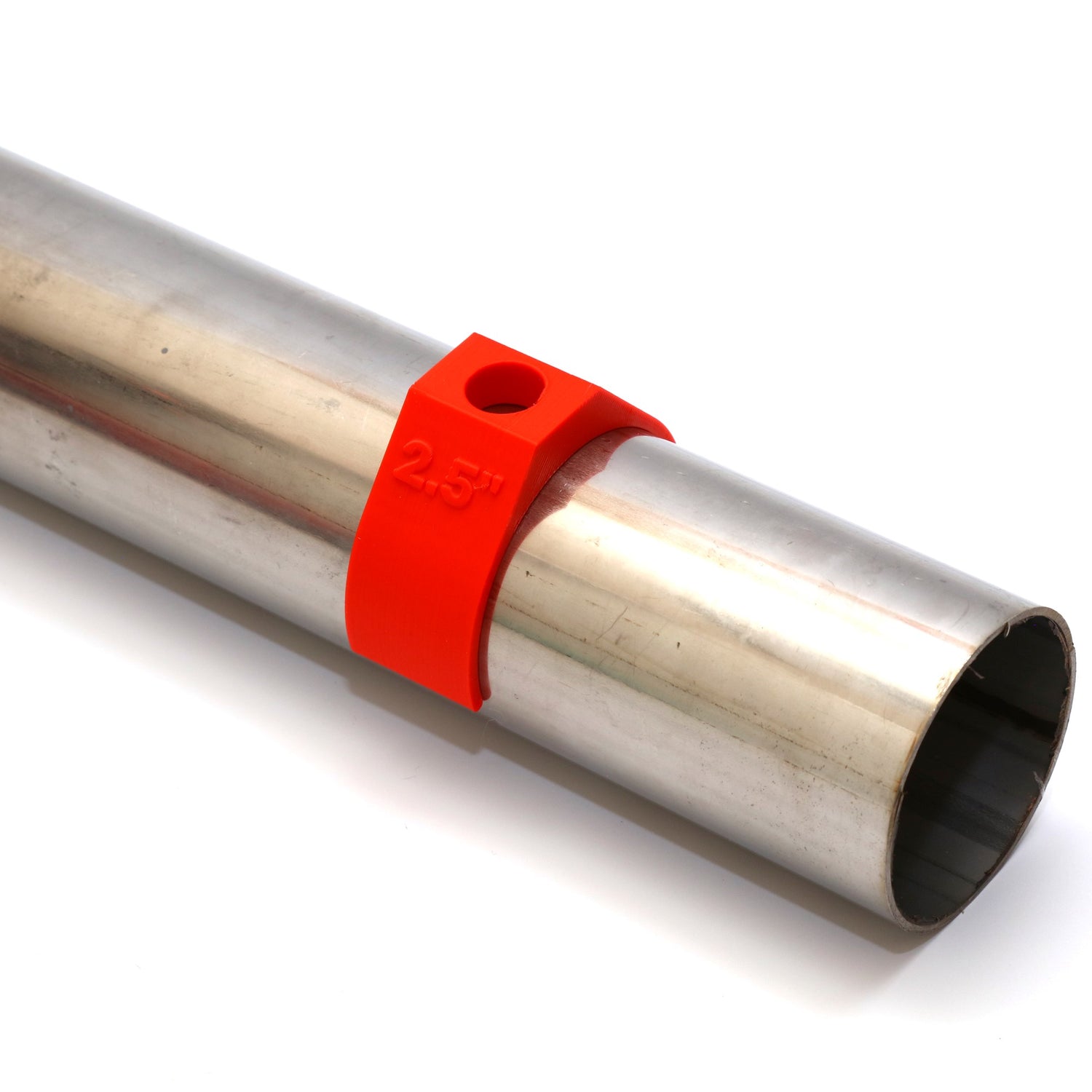

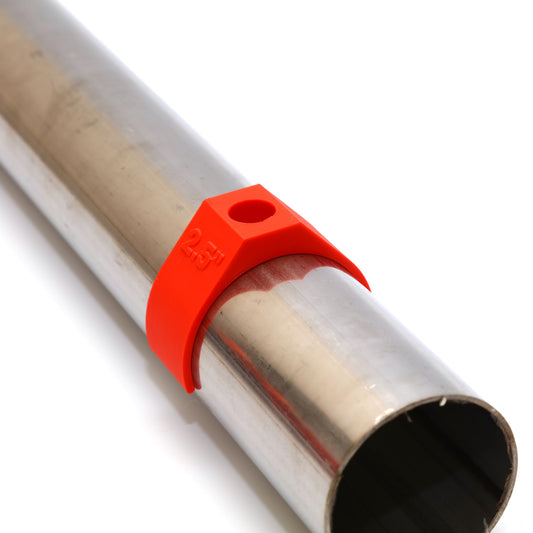

Sensor Alignment Guides
Sensor bungs need to sit at the right angle and clocking, or...
Best sellers
-

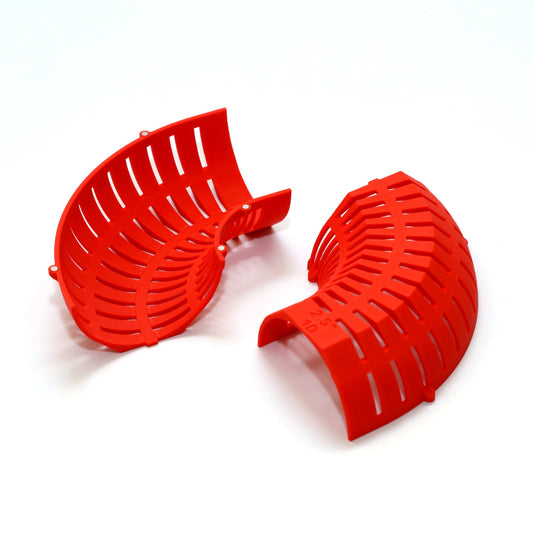

Mandrel Bend Angle Marking Jig Guide - OD Tube
Regular price From £21.99Regular price -

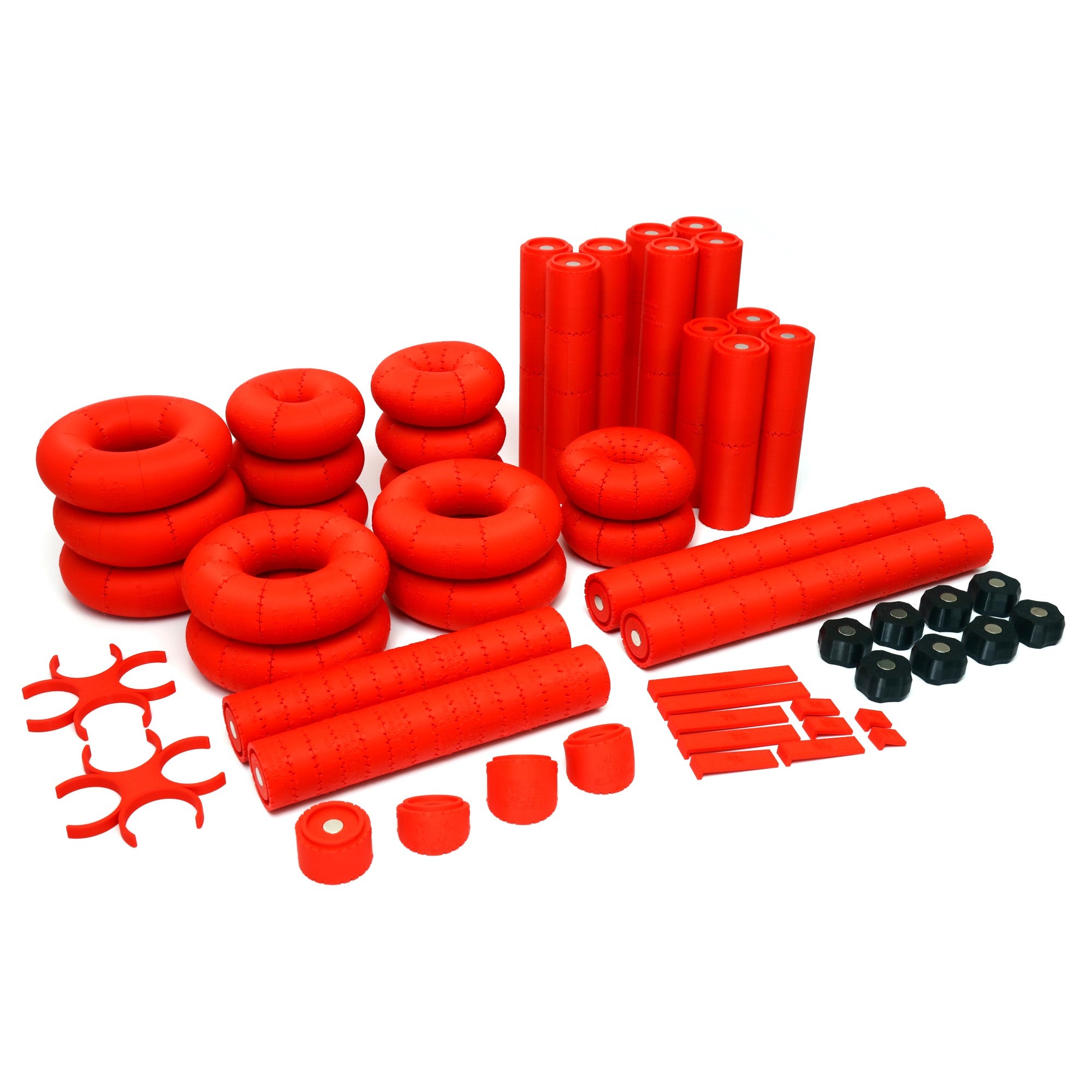

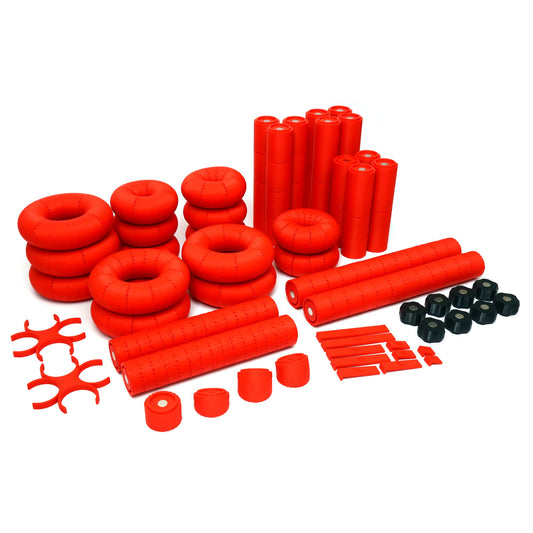

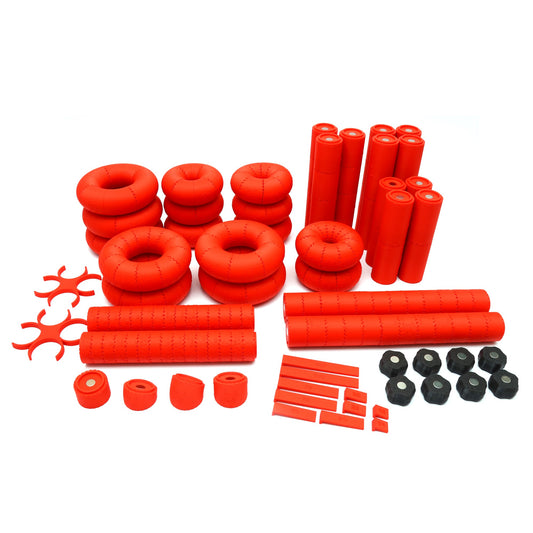

Turbo Manifold Mockup Kit 1.25" NPS SCH10S (42.2mm OD) – 219pc WORKSHOP
Regular price £337.99Regular price -
Turbo Manifold Mockup Kit 1.25" NPS SCH10S (42.2mm OD) – 136pc BUILDER
Regular price £261.99Regular price -
Buy 3 & SaveY Pipe Cutting Guide Jig Sleeves - OD Tube
Regular price From £12.74Regular price
Every Bend. Every Cut. Perfected.
Made in the UK, to order
Every guide, jig and kit is designed and made in our UK workshop. Most orders are dispatched within 5 working days.
Sized for pipe and tube
Sizes from 1" to 3.5" NPS for SCH10S pipe, and from 1.5" to 4.5" for OD tube.
Shipping from the UK
We ship across the UK and the EU, and to the US, Canada, Australia, New Zealand and more.
Fabrication guides
View all-

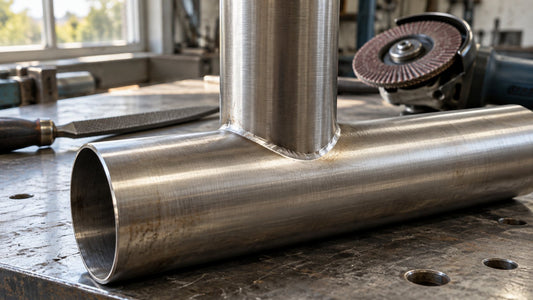

How to Notch (Fishmouth) Tube Without a Notcher
You don't need a hole-saw notcher to cut a tight fishmouth. How to mark and cut T-joints and angled branch joints with a paper template, a grinder or a slip-on...
How to Notch (Fishmouth) Tube Without a Notcher
You don't need a hole-saw notcher to cut a tight fishmouth. How to mark and cut T-joints and angled branch joints with a paper template, a grinder or a slip-on...
-

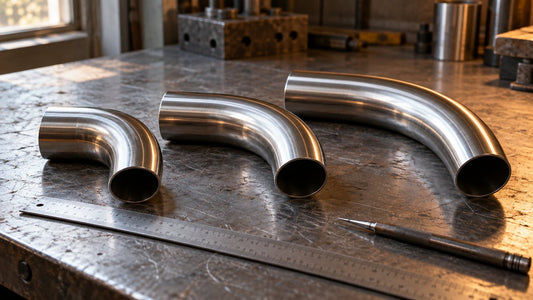

1D vs 1.5D vs 2D Bends: Centreline Radius (CLR)...
What centreline radius means, why 1.5D is a different size on a pipe elbow than on mandrel-bent tube, and how to choose between 1D, 1.5D and 2D for a manifold...
1D vs 1.5D vs 2D Bends: Centreline Radius (CLR)...
What centreline radius means, why 1.5D is a different size on a pipe elbow than on mandrel-bent tube, and how to choose between 1D, 1.5D and 2D for a manifold...
-

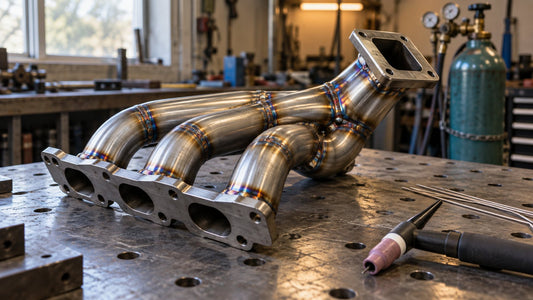

How to Mock Up a Turbo Manifold Before You Cut ...
Stainless pipe and weld elbows are too expensive to learn on. Here is how to route, check and record a turbo manifold in mockup blocks, then build it in metal.
How to Mock Up a Turbo Manifold Before You Cut ...
Stainless pipe and weld elbows are too expensive to learn on. Here is how to route, check and record a turbo manifold in mockup blocks, then build it in metal.
